Product Description

AMD® LK series dry ore stone color sorter machine integrates advanced visible light sorting technologies.

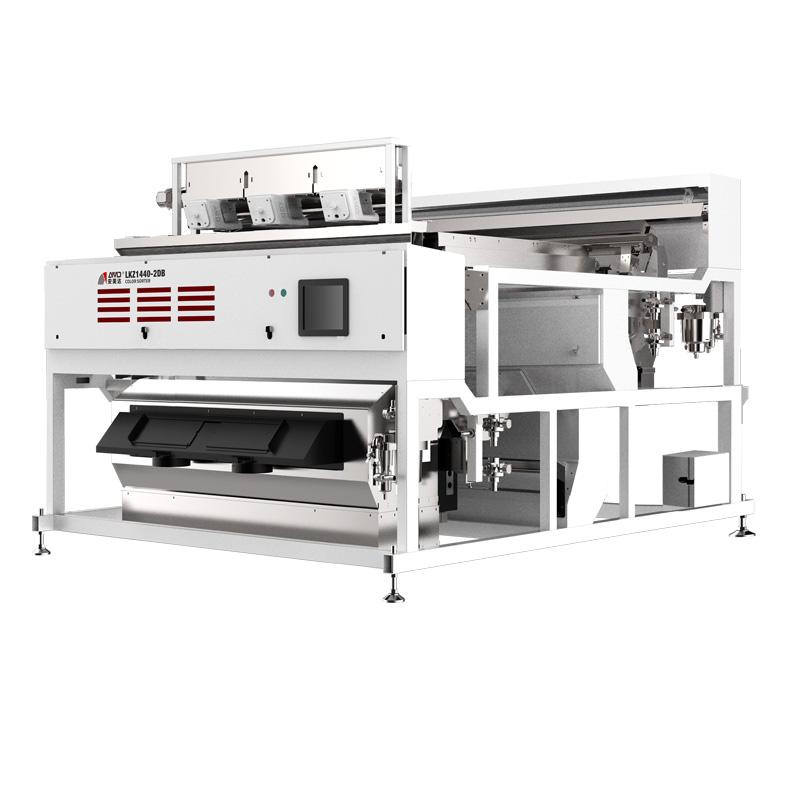

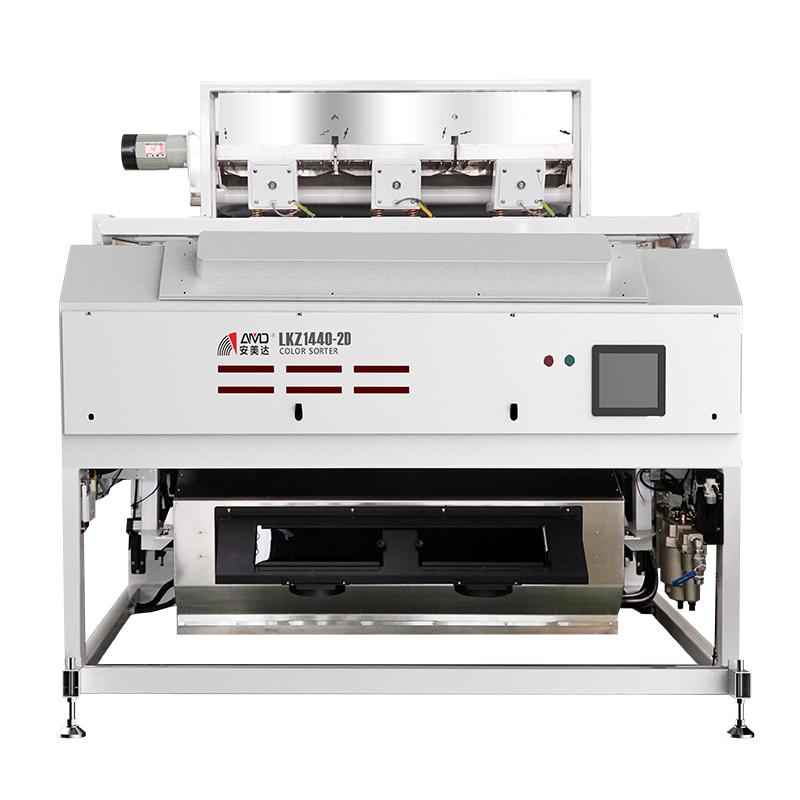

LKZ1440-2DB is suitable for sorting raw ore stone, completely replace the artificial sorting. Wet ore operation also can be carried out and sorting can also be performed on the water-containing ore.

Based on the difference in the color of the ore, to achieve metal ore, non-metallic ore pre-concentration, roughing operations.
Widely used in quartz, feldspar,calcite,marble and other non-metallic minerals and tungsten, manganese, molybdenum, lead, zinc, copper,silver,tin, hematite and other metal minerals

Our Advantages

• Solving the problem of sorting in the harsh environment of dry ore with high dust, high pollution and high corrosion
• Fast belt, greatly improve the processing capacity of the machine, the output increased by more than 50%.
• Widely applicable to medium and small ore particles from 1-30mm size
• Invisible multipath light back-off system that increases sorting accuracy and stability
• Industry's highest configuration with 128 high-frequency ejector valves
• Large Capacity and Low Loss



Sorting Applications

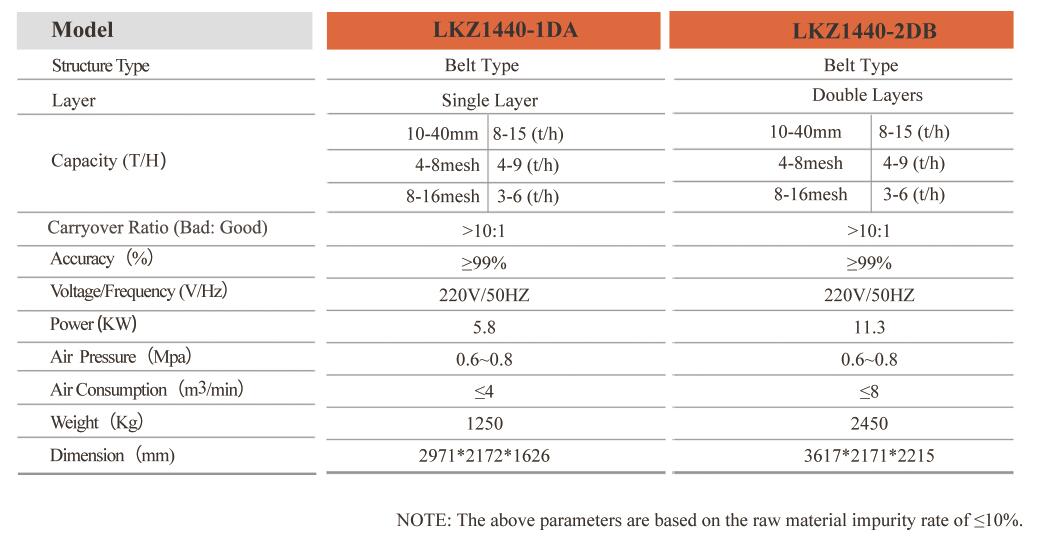

Technical Parameters

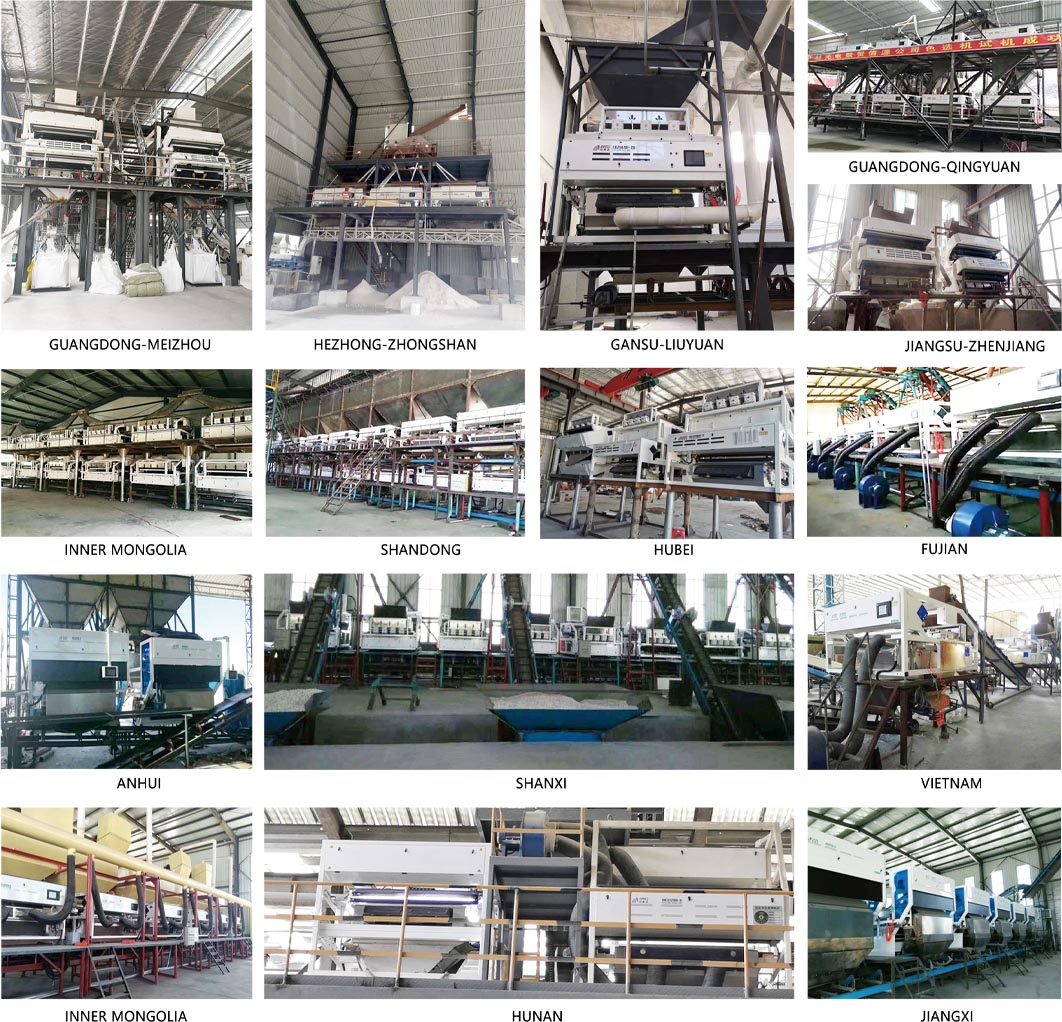

Installations

Company Information

ANHUI ZHONGKE OPTIC-ELECTRONIC COLOR SORTER MACHINERY CO.,LTD

is a national high-tech enterprise and a main board listed company specializing in the research  and development, manufacturing and sales of intelligent sorting equipment

Stock Code 603011
20+years of manufacturing experiences,
900+employees
100+product series
200+R&D personnel
300+ invention patents
35,000+ customers worldwide
50,000+ machines running worldwide
150+ Million USD sales revenue in year 2023
