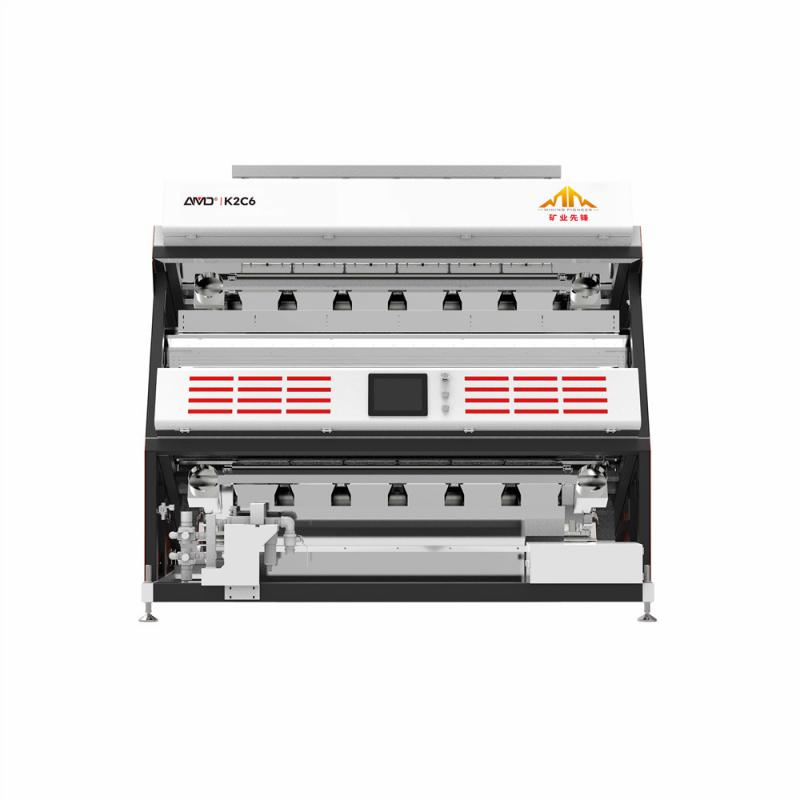

AMD® K2C6 Series ore quartz powder sorting machine providing sorting solutions for the quartz/silica powder range from 16mesh-120mesh.
Item NO.:
K2C6Product Detail
Product Description
AMD® K2C6 series ore quartz powder sorting machine integrates advanced visible light sorting technologies.
K2C6 is suitable for sorting raw quartz sandstone, completely replace the artificial sorting.The vertical chute design solves the problems of ore and belt bonding during the fine ore sorting process with a wide range of ore powder size ranging from 16 mesh to 120 mesh.
Our Advantages
The chute is made of high-density alloy material, which is resistant to abrasion and scratches.
Quartz/Silica Sand Sorting Applications
Technical Parameters
Model
K2C6
K2C6(PRO)
K2C6(APEX)
Capacity
16-26mesh
4.5-7.5t/h
16-26mesh
4.5-7.5t/h
16-26mesh
4.5-7.5t/h
26-40mesh
3.5-6.5t/h
26-40mesh
3.5-5.5 t/h
26-40mesh
3.5-6.5t/h
40-70mesh
2.5-4.5 t/h
40-70mesh
2.5-4.5 t/h
40-70mesh
2.5-4.5 t/h
70-120mesh
1.5-2.5 t/h
70-120mesh
1.5-2.5 t/h
70-120mesh
1.5-2.5 t/h
Carryover Ratio
(Bad:Good)
1:20
1:15
1:10
Sorting Accuracy
≥99%
≥99%
≥99.9%
Voltage/Frequency
380V/50HZ
380V/50HZ
380V/50HZ
Power
7.0KW
7.0KW
6.6KW
Air Pressure
0.6~0.8MPa
0.6~0.8MPa
0.6~0.8MPa
Air Consumption
≤3.6m³/min
≤3.6m³/min
≤3.6m³/min
Weight
2700KG
2700KG
2700KG
Dimension
2726*2062*2609mm
2726*2062*2609mm
2726*2062*2609mm
Ore Sorting Cases
AMD at Mining Expo
Company Information
ANHUI ZHONGKE OPTIC-ELECTRONIC COLOR SORTER MACHINERY CO.,LTD
is a national high-tech enterprise and a main board listed company specializing in the research and development, manufacturing and sales of intelligent sorting equipment
Stock Code 603011
23+years of manufacturing experiences,
1000+employees
100+product series
300+R&D personnel
300+ invention patents
50,000+ customers worldwide
80,000+ machines running worldwide
150+ Million USD sales revenue in year 2024
