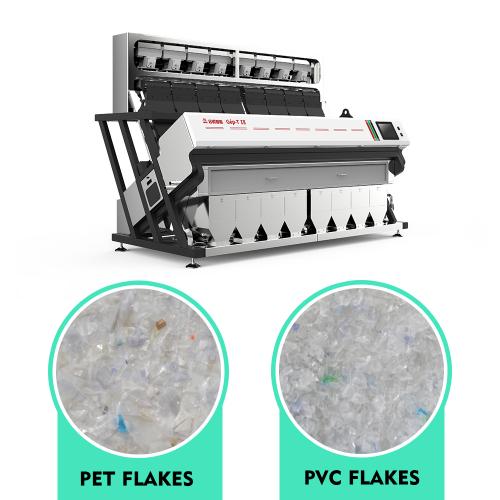

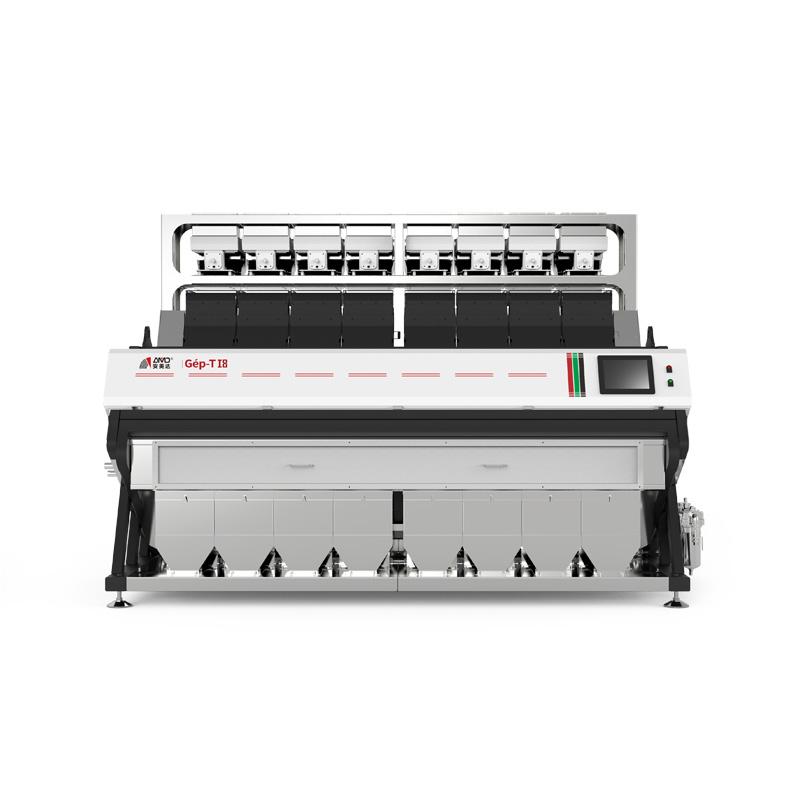

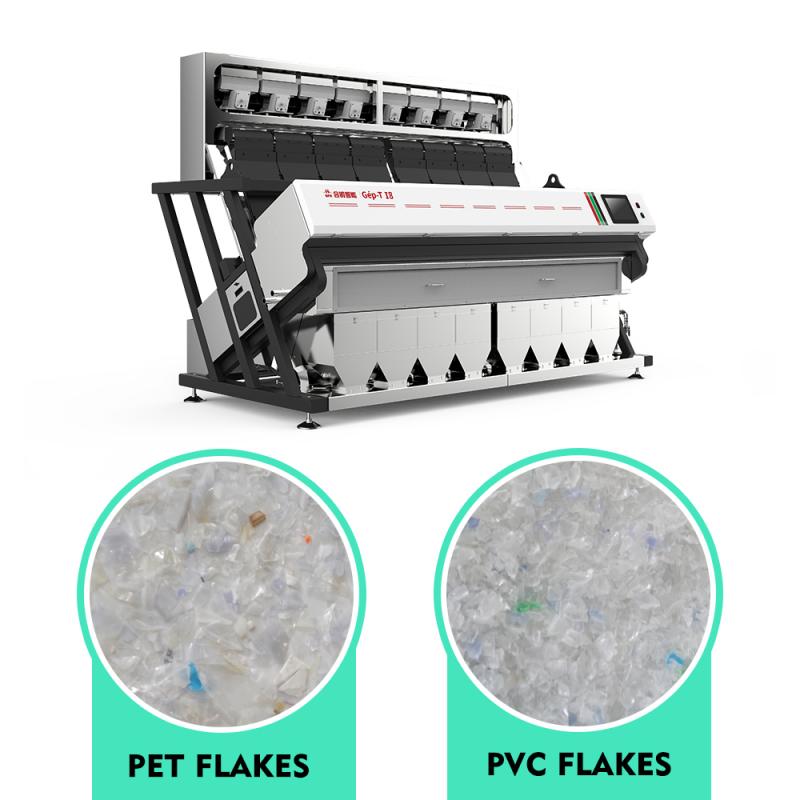

Designed for PET and PVC separation, the AMD® GID series polymer sorter can efficiently separate different plastic mixtures based on the near infrared (NIR) spectral properties of the materials.
Item NO.:
GID SeriesProduct Detail
Product Description
The separation of PET and PVC flakes for plastics recycling is a critical step in ensuring the purity and quality of the recycled materials, as these two materials cannot be recycled together due to their different chemical properties. AMD® NIR sorting technology is effective for this purpose because different materials have different spectral signatures in the NIR range, allowing accurate identification and separation.
Sorting Applications
Technical Parameters
|
Model |
Throughput (t/h)
|
Voltage/Frequency (V/Hz) |
Power (kW)
|
Dimensions （L*W*H）（mm）
|
Weight （kg）
|
|
GID2 |
0.4-1.5 |
220V/50HZ |
2.2 |
1475*1928*2385 |
900 |
|
GID3 |
0.6-2.3 |
220V/50HZ |
4.2 |
2150*1928*2385 |
1150 |
|
GID4 |
0.8-3 |
220V/50HZ |
4.2 |
2150*1928*2385 |
1250 |
|
GID5 |
0.8-3.3 |
220V/50HZ |
6.2 |
2825*1928*2385 |
1750 |
|
GID6 |
1-4 |
220V/50HZ |
6.2 |
2825*1928*2385 |
1850 |
|
GID7 |
1.8-5.3 |
220V/50HZ |
8.2 |
3518*1928*2385 |
2200 |
|
GID8 |
2-6 |
220V/50HZ |
8.2 |
3518*1928*2385 |
2300 |
Cases Study
Company Information
ANHUI ZHONGKE OPTIC-ELECTRONIC COLOR SORTER MACHINERY CO.,LTD
is a national high-tech enterprise and a main board listed company specializing in the research and development, manufacturing and sales of intelligent sorting equipment.
Stock Code 603011
20+years of manufacturing experiences,
900+employees
100+product series
200+R&D personnel
300+ invention patents
35,000+ customers worldwide
50,000+ machines running worldwide
150+ Million USD sales revenue in year 2023
